Manual Push Pull Shutters

Spring Loaded • Secure • Residential Medium Duty

These window roller shutters are great for serveries, counters in front of cupboards wardrobes as well as sheds carports and wherever else AC power is not readily available

What seperates Manual Push Pull Roller Shutter from other shutters

  • Aesthetics: excellent styling Slim pelmet box, 14 top Colorbond colours
  • Excellent for: Security, Partitioning off areas
  • Good for: Areas with not much bulkhead space

Slimline Roller Shutter Benefits

  • Up to 80% noise reduction
  • Up to 15° cooler in summer
  • Up to 15° warmer in winter
  • Up to 98% light block out
  • Up to 40% more energy efficient
  • Secure, built-in locking mechanism
  • Eliminates condensation
  • Reduces glare
  • Rust prevention: 95% components aluminium

Suitable Applications

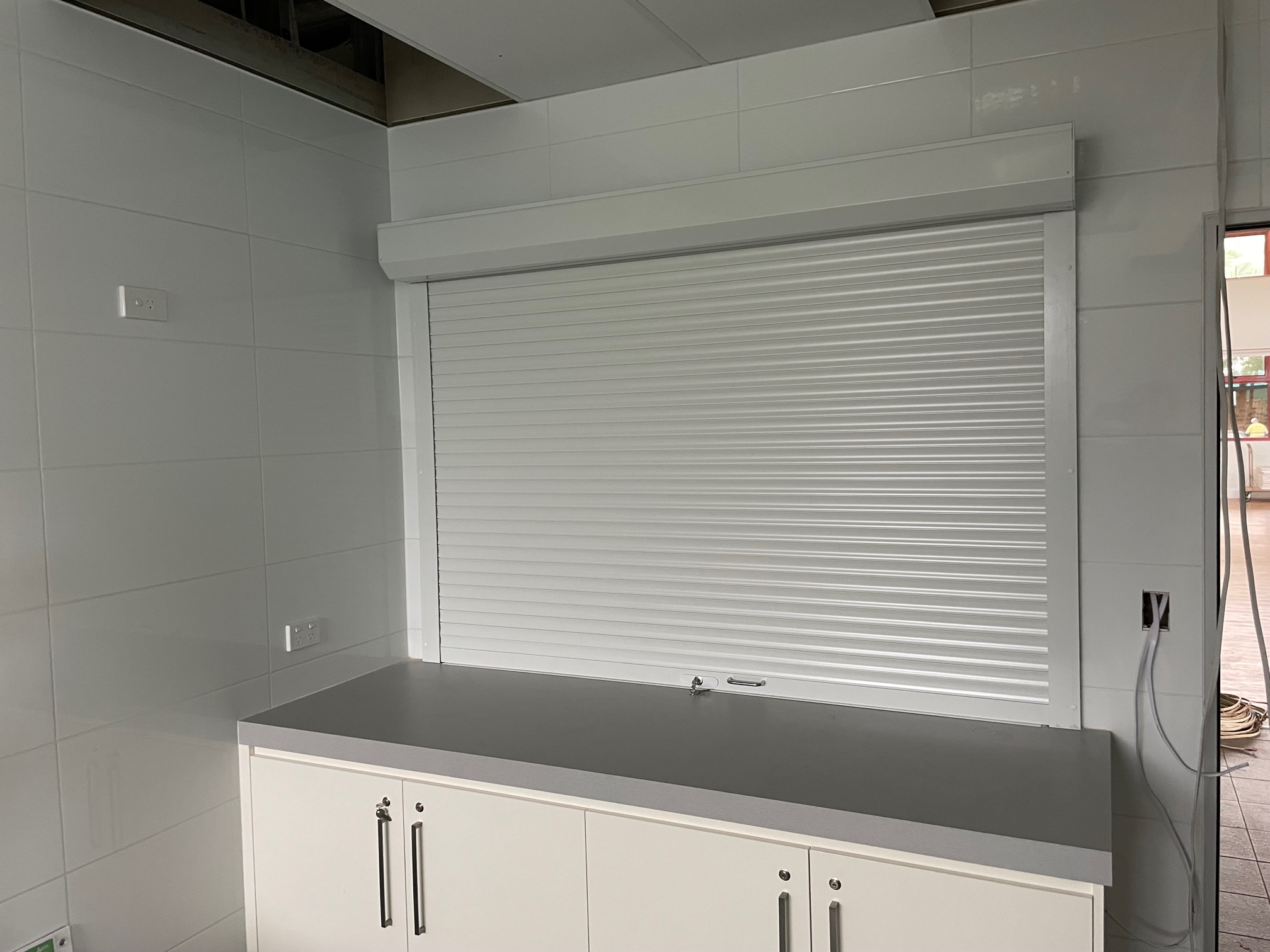

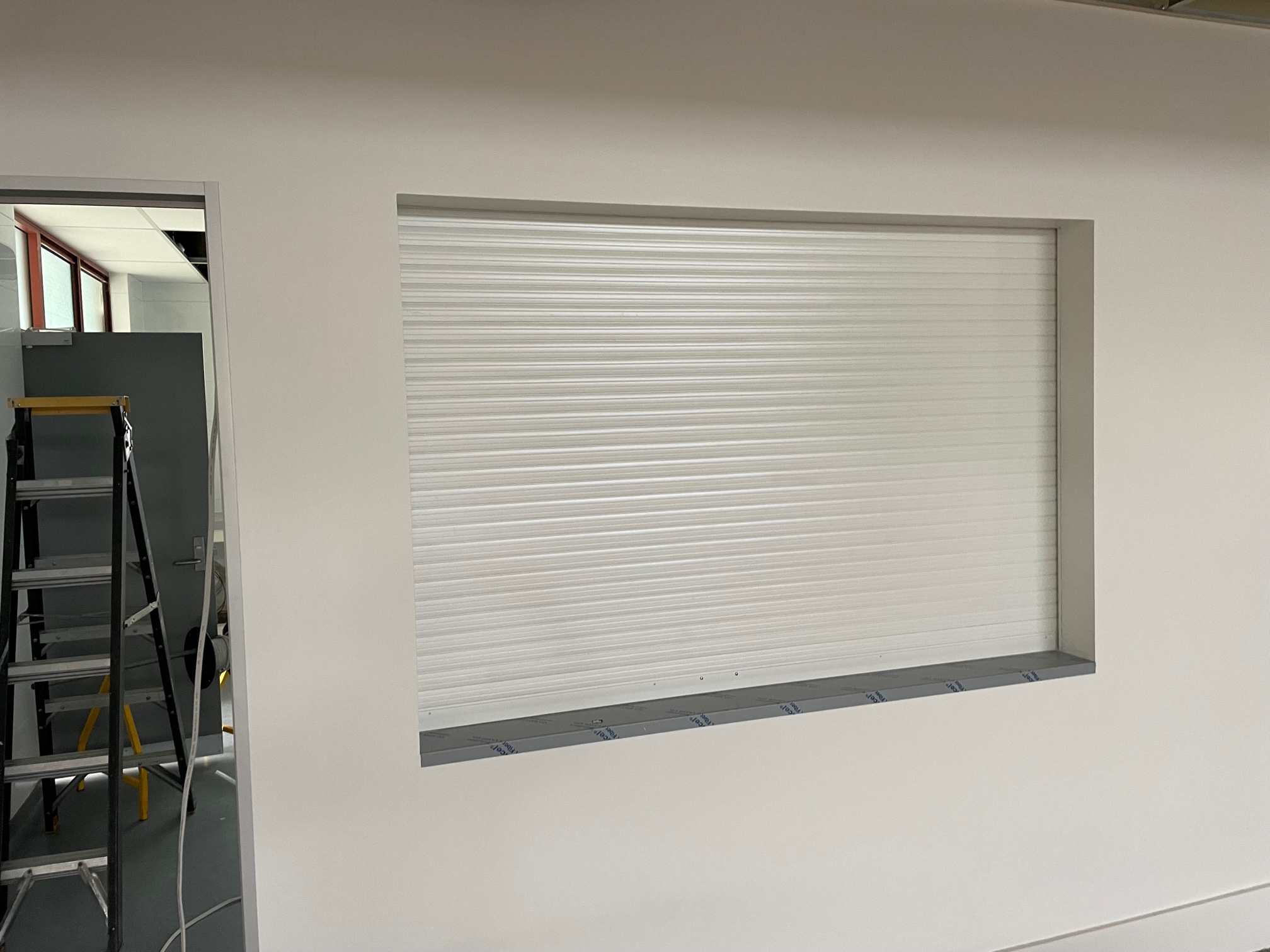

  • Kitchen Serveries
  • Internal Room Dividers
  • Internal Storage Cabinets
  • Light Commercials Shop Fronts

Technical Specifications

Maximum Height 3600 mm
Maximum Width 3600 mm
Curtain Weight 3.8 kg per m2
Profile Size 45mm x 9mm x 0.33mm Aluminium
Standard Guides 54mm x 22mm x 1.2mm Aluminium
Extended Guides 70mm x 23mm x 2.5mm Aluminium
Bottom Bar 52mm x 8mm x 1.1mm Aluminium
Axle 57mm x 2.1mm Aluminium

Pelmet Chart

Max Height (Inc. Pelmet Box) Pelmet Size
1300mm 150mm x 150mm
1700mm 165mm x 165mm
2135mm 180mm x 180mm
3000mm 205mm x 205mm
3400mm 230mm x 205mm

Profile

  • Type: 45 mm x 9 mm x 0.33 mm Aluminium Interlocking slats
  • Insulation: Polyurethane filled
  • Brand: Pracal
  • Country of Origin: Italy

Pelmet

  • Type: 0.78 mm Aluminium
  • Brand: Expalum
  • Country of Origin: Spain

Motor

  • Type: 240 volt mains tubular
  • Brand: ASA
  • Country of origin: Italy
Benefit Slimline Titan Cyclone Patiomate Maxspan Clear Polycarb Manual Push Pull
Security ⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐ ⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐ ⭐⭐⭐
Summer Insulation ⭐⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐ ⭐⭐⭐⭐
Winter Insulation ⭐⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐⭐
Noise Reduction ⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐
Privacy ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐
Light Control ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐
Energy Savings ⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐
Bushfire Protection ⭐⭐ ⭐⭐⭐ ⭐⭐ ⭐⭐ ⭐⭐ ⭐⭐
Wind Protection ⭐⭐⭐ ⭐⭐⭐⭐⭐ ⭐⭐⭐⭐ ⭐⭐⭐ ⭐⭐⭐⭐ ⭐⭐ ⭐⭐⭐
Slat Colors
Night Sky Black Night Sky Black
Blue Ridge Blue Ridge
Classic Cream Classic Cream
Deep Ocean Deep Ocean
Dune Dune
Evening Haze Evening Haze
Gully Gully
Jasper Jasper
Monument Monument
Paperbark Paperbark
Shale Grey Shale Grey
Surfmist Surfmist
Natural White Natural White
Woodland Grey Woodland Grey
